QZ USB 3.1 Type C Hub, Model QZ-HB18

Published On 07/08/2021 4:06 PM by QZ Support
QZ USB-C hub model QZ-HB18 was introduced in 2019. The first of its kind in India with some special capabilities and features.
The hub features 2 USB-A and 2 USB-C ports with Power Delivery PD3.0 full-speed-pass-through charging feature.

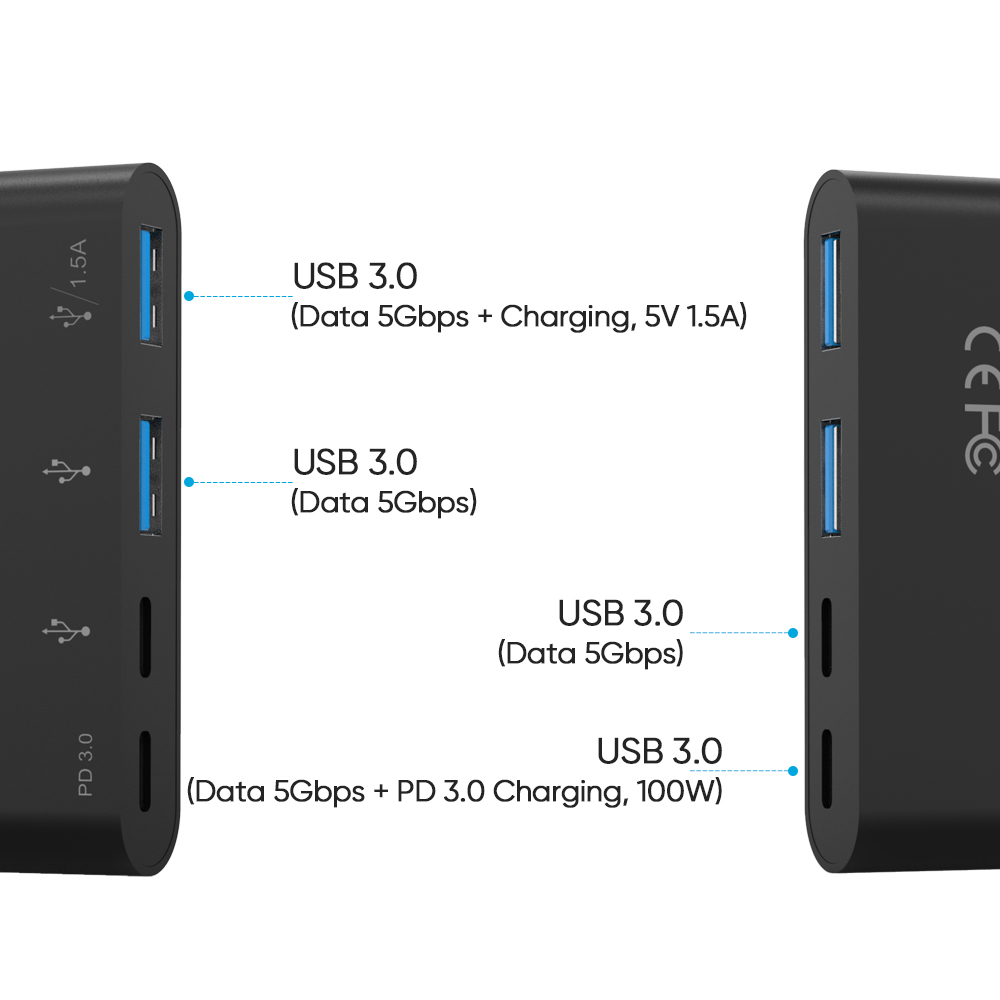

Output (2 x USB-C) + (2 x USB-A)
​Here are the USB outlet specific list of features.

(2 x USB-C):
One of the two Type-C ports is designed for transmitting data (5Gbps) and charging for the connected Type-C device (5V/1.5A), another Type-C port supports both data (5Gbps) and PD 3.0 charging the host max 100W (20V/5A). (When two or more ports are simultaneously connected, the total max output depends on the host PC (eg, max 900mA on Chromebook, max 1.5A on Macbook))
Output Interface: 2 USB 3.1 Type C Ports
Port 1: Data 5Gbps, Power max 5V/1.5A
Port 2: Data 5Gbps, Power PD 3.0, max 100W (20V/5A)

(2 x USB-A)
2 USB 3.1 GEN1 Type-A SuperSpeed ports support data transfer rates of up to 5Gbps. One of the two USB-A ports is BC 1.2 compatible with max 7.5W (5V/1.5A) output, can charge the connected USB-A devices (mobile phones, tablets, U-disk, etc).
Output Interface: 2 USB 3.1 GEN1 Type A ports
Port 1: BC1.2, Data 5Gbps, Power max 7.5W (5V/1.5A)
Port 2: Data 5Gbps, Power max 5V/0.9A


This entry was posted in USB-C Hub
